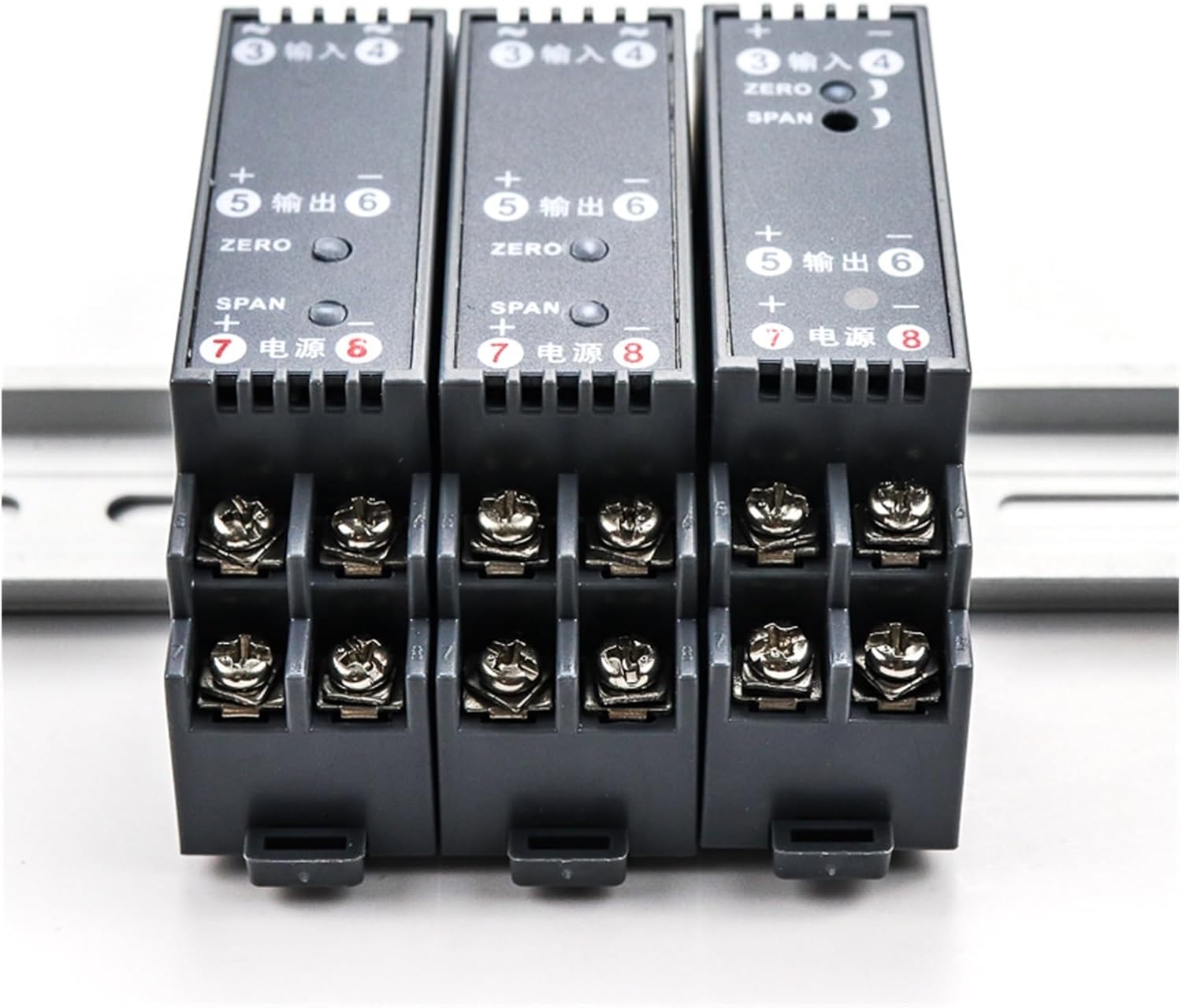

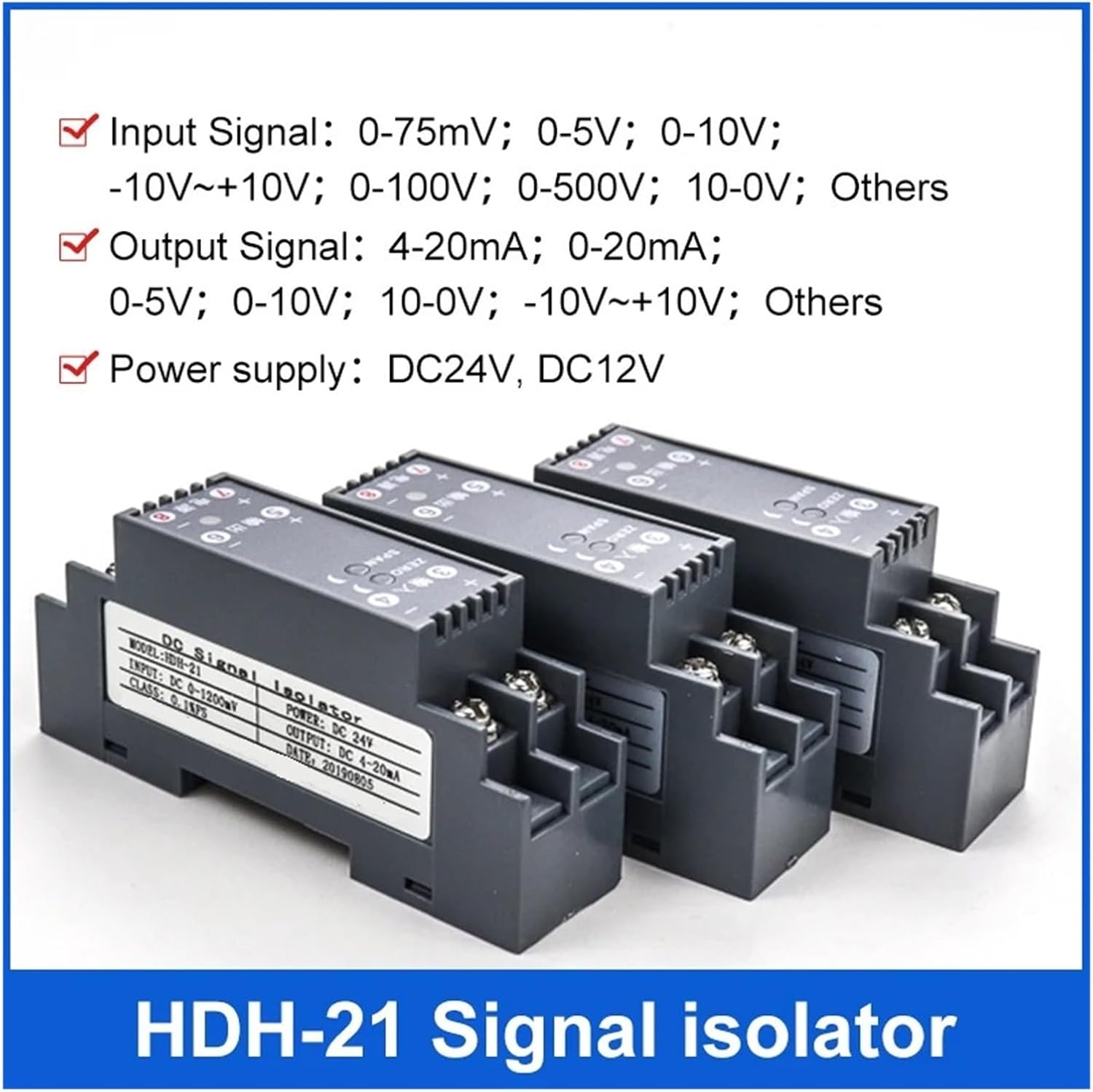

AC/DC Voltage Transducer / 0-5V / 4-20mA Isolated Modules / 0-10V Voltage Transmitter 24VDC (Color : 4-20mA Out, Size : 0-50V AC)

Mainly technical parameters:Product name12v/24v power 0~500v ac input analog voltage transducer 0-10vKey words0~500v analog voltage transducerTransmitting accuracy±0.1%F.S(25±2)Rise time10msSettling time100msInfluence of ambient temperature<; 30 ppm/Ripple<;1 mVFrequency range0~100 HzInput resistancecurrent: 60 voltage: 0~5V:1M; 0~10V:2MOutput load capacityDC current:0~10mA: 700; 4~20mA: 600; 0~±10mA: 1k; 0~±20mA: 500DC voltage:0(1)~5V: 1M; 0~10V: 2M;0~±5V: 1M; 0~±10V: 2MPlease specify your requirements before order if greater output load capacity is needed.Power supply voltage range:18~32V DC (Recommended voltage:24V DC)Power consumption24V DCSingle output0.4WDouble output0.6WInsulation resistance100 M (Input /Output /Power)Dielectric strength2500 V AC (Input /Output /Power, 1mA leakage current, 1 minute test time)Electromagnetic compatibilityIEC 61000-4

• High accuracy, good linearity
• Strong anti-interference
• It has high integration, small volume, easy installation, high error accuracy, good linearity.
• no adjustable potentiometer, and can work stably for a long time and adapt to various working environments.
• It is widely used in the system control and detection of electrical equipment in electric power, petroleum,coal mine, chemical industry, railway, communication, building automation and other industries.
